AS4 messages
An ebMS message is a SOAP message that contains SOAP header(s) qualified with the ebMS namespace, and that conforms to the AS4 specification.
Message structure
There are two logical sections within the ebMS message package:
- The first section is the ebMS Header (the eb:Messaging SOAP header block), itself contained in the SOAP Header.
- The second section is the ebMS Payload, which itself comprises two sections:
- The SOAP Body element within the SOAP Envelope and in case of MIME packaging,
- Zero or more additional MIME parts containing additional application-level payloads. The SOAP Body and MIME parts are also referred to as ebMS Payload Containers. The SOAP Body is the only payload container that requires XML-structured content
When you trade messages with AS4 you exchange two categories of messages:
- User messages - Usually containing a payload
- Signal messages – Containing requests, receipts and error messages

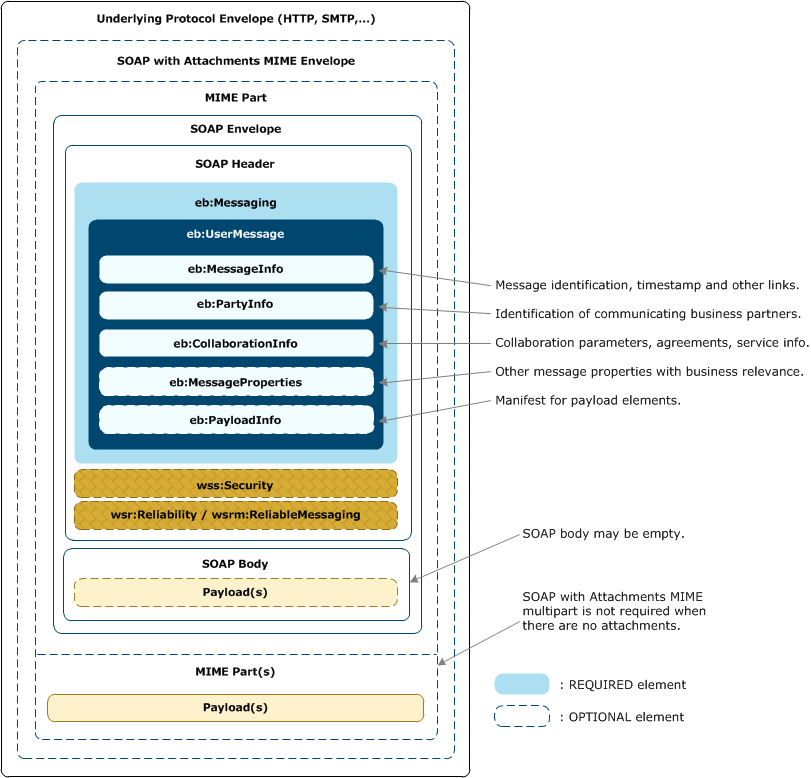

The following figure describes the general structure and composition of ebMS User Message:

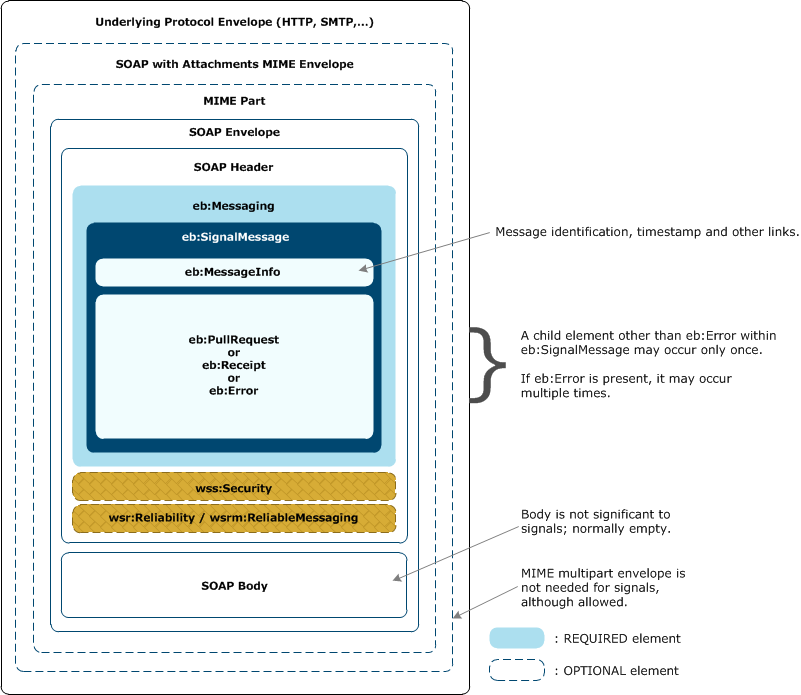

The following figure describes the general structure and composition of ebMS Signal Message:
